Explain Difference Between Zener and Avalanche Breakdown
Explain the difference between Zener breakdown and Avalanche breakdown mechanisms. It is a passive element because the current flows in one direction.
What Is Zener Breakdown And Avalanche Breakdown Ideal Actual Zener Diode Circuit Globe
I When both sides of the PN junction are lightly doped and the depletion layer becomes large Avalanche breakdown takes place.
![](https://electronicscoach.com/wp-content/uploads/2017/10/Characteristics-Curve-of-Zener-and-Avalanche-Breakdown.jpg)
. I When both sides of the PN junction are heavily doped consequently the depletion layer is narrow and zener breakdown takes place. This breakdown is known as the Zener breakdown. The avalanche breakdown is an occurrence of raising the flow of electric current or electrons in insulating material or semiconductor by giving the high voltage.
7 rows The main difference between Zener breakdown and avalanche breakdown is their mechanism of. The Zener and Avalanche breakdown both occur in diode under reverse bias. 12 rows Zener breakdown occurs when a high electric field is created over a junction.
They are both similar effects the difference being that the Zener effect is a quantum phenomenon and the avalanche effect is the movement of electrons in the valence band like in any electric current. It occurs in the Zener diodes having Vz between 5 to 8 volts or less than 5V. Difference Between P-N Junction Diode and Zener Diode Diode is the simplest semiconductor element which has one PN-connection and two terminals.
Draw a diagram showing the volt-ampere characteristic of a Zener diode. Zener breakdown and avalanche breakdown occurs in reverse biased condition. A Zener diode is constructed in the similar manner by which conventional diode is constructed the only difference is the doping characteristics.

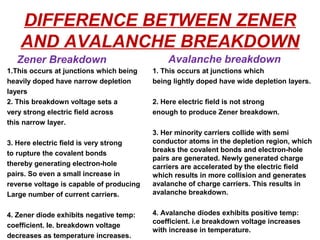

Zener breakdown is the controlled version of Avalanche breakdown in a modified p-n junction. The depletion region of the Zener is thin whereas the avalanche is thick. Avalanche breakdown occurs in the p-n junction when the Vz is greater than 8 volts.
A Zener diode is doped properly thus the breakdown voltage can be modified by controlling the depletion width of the diode. Avalanche breakdown occurs due to the rapid collision of electrons with other atoms. Draw a diagram showing the volt-ampere characteristic of a Zener diode.
Zener breakdown occurs because of the high electric field. Zener breakdown occurs when the high electric field is created across the junction. In the reverse biased condition the conduction will take place only due to the minority carriers.
Ii The electric field across the depletion layer is not so strong. One of the major difference between the Avalanche and the Zener breakdown is that the. The P and n regions of Zener diodes unlike conventional PN-junction diodes are extensively doped.
Nevertheless Zener diodes contain highly doped n and p regions resulting in a thin depletion region and a. The Avalanche Breakdown and Zener Breakdown are two different mechanisms by which a PN junction breaks. The significant difference.
Generally speaking a zener diode will be operating in either breakdown or reverse bias mode. The Zener diode on the contrary allows flowing of the reverse current. The connection of the Zener is not-destroy whereas the avalanche is destroyed.
Avalanche Breakdown needs collision of minority carriers and covalent bonds to provide electrons and holes. 15 rows The diode allows the current flow in only one direction and blocks in the opposite direction. Therefore zener breakdown voltage is less than avalanche breakdown.
Avalanche Breakdown vs Zener Breakdown. The major difference between Zener breakdown and avalanche breakdown is the nature of operations. In Zener breakdown the breakdown voltage depends on the temperature of P-N junctionThe breakdown voltage decreases with increase in the junction temperature.
Key differences Between Zener and Avalanche Breakdown. The diode which break down in case of avalanche breakdown are generally p-n junction diode which are normally doped. The avalanche breakdown is observed in the Zener Diodes having V z having than 8 V.
The Zener effect is dominant in voltages up to 56 volts and the avalanche effect takes over above that. Zener breakdown happens at low voltages whereas avalanche breakdown happens at higher voltages. In other words the amount of impurity atoms in the Zener diode will be higher than in a regular PN-junction diode.
The avalanche breakdown occurs because of the ionisation of electrons and hole pairs whereas the Zener breakdown occurs because of heavy doping. Explain the difference between Zener breakdown and Avalanche breakdown mechanisms. So diode with 62v is having zener breakdown rest is avalanche breakdown in this case.
Difference Between Zener and Avalanche Breakdown The crucial difference between the Zener and Avalanche breakdown is the operating mechanism. In n-type of semiconductor electrons are the main. What is P-N Junction Diode.
Another major difference is the doping the avalanche effect occurs in lightly doped PN-junction diodes whereas the Zener breakdown occurs in heavily doped diodes. The breakdown operation in the Zener diode however differs from that of the avalanche breakdown. This is the advantage of using a zener diode in reversed biased condition.
Void Runner 03 Apr 2014 The main difference between the two is that avalanche breakdown is a result of carrier multiplication while Zener effect is a result of electron tunnelling.
